Breathing Circuit
Soft tubing, anti-bending, transparent
Biocompatible material deduce possible allergy
Standard connector meet ISO standard
Available with water trap, catheter mount and different connectors
Can be connected with Soundway NIV masks
Product specification

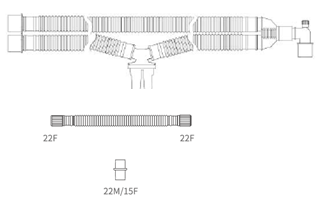

Dual limb with extra limb, 2 water traps
Ref no. | Item Description | Case Qty |
B0702 | Adult, 1.8m Corrugated dual limb Breathing Circuit with 2 water trap, with 0.4m extra limb | 20 |
B0732 | Pediatric, 1.5m Corrugated dual limb Breathing Circuit with 2 water trap, with 0.4m extra limb | 20 |
B0752 | Neonate,1.5m Corrugated dual limb Breathing Circuit with 2 water trap, with 0.4m extra limb | 20 |
B0902 | Adult, 1.8m Smoothbore dual limb Breathing Circuit with 2 water trap, with 0.4m extra limb | 20 |
B0932 | Pediatric, 1.5m Smoothbore dual limb Breathing Circuit with 2 water trap, with 0.4m extra limb | 20 |

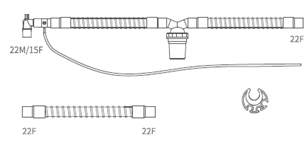

Dual limb with extra limb, 1 water traps
Ref no. | Item Description | Case Qty |
B0712 | Adult 1.8m, Corrugated tubing, Y connector with ports, CO2 ported elbow, single Water Trap, with 0.4m limb | 20 |
B0742 | Pediatric 1.5m, Corrugated tubing, Y connector with ports, CO2 ported elbow, single Water Trap, with 0.4m limb | 20 |
B0762 | Neonate 1.5m, Corrugated tubing, Y connector with ports, CO2 ported elbow, single Water Trap, with 0.4m limb | 20 |
B0912 | Adult 1.8m, Smoothbore tubing, Y connector with ports, CO2 ported elbow, single Water Trap, with 0.4m limb | 20 |
B0942 | Pediatric 1.5m, Smoothbore tubing, Y connector with ports, CO2 ported elbow, single Water Trap, with 0.4m limb | 20 |

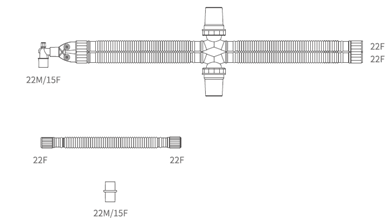

Single limb with 1 water traps
Ref no. | Item Description | Case Qty |
B1722 | Adult 1.8m, Corrugated tubing, CO2 ported elbow, single water trap with 2.1m Gas Sampling Line and 0.4m limb | 20 |
B1732 | Pediatric 1.5m, Corrugated tubing, CO2 ported elbow, single water trap with 2.1m Gas Sampling Line and 0.4m limb | 20 |
B1742 | Neonate 1.5m, Corrugated tubing, CO2 ported elbow, single water trap with 2.1m Gas Sampling Line and 0.4m limb | 20 |
B0915 | Adult 1.8m, Smoothbore tubing, CO2 ported elbow, single water trap with 2.1m Gas Sampling Line and 0.4m limb | 20 |
B0935 | Pediatric 1.5m, Smoothbore tubing, CO2 ported elbow, single water trap with 2.1m Gas Sampling Line and 0.4m limb | 20 |

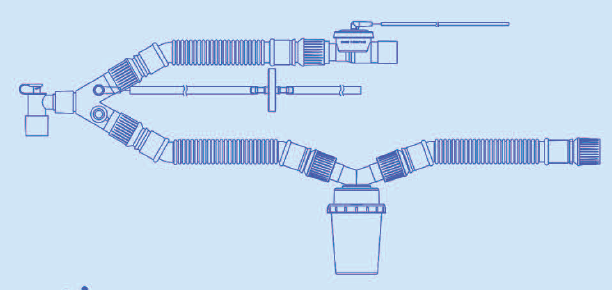

J-Circuit, Single limb with 2way-vavle
Ref no. | Item Description | Case Qty |
B1001 | 1.5m J-circuit, Corrugated single limb for adult, Y connector with ports, 2 way-valve, 1.8m pressure line, 1.5m sampling line, hydrophobic filter | 20 |
B1002 | 1.5m J-circuit, Corrugated single limb for pediatric, Y connector with ports, 2 way-valve, 1.8m pressure line, 1.5m sampling line, hydrophobic filter | 20 |
